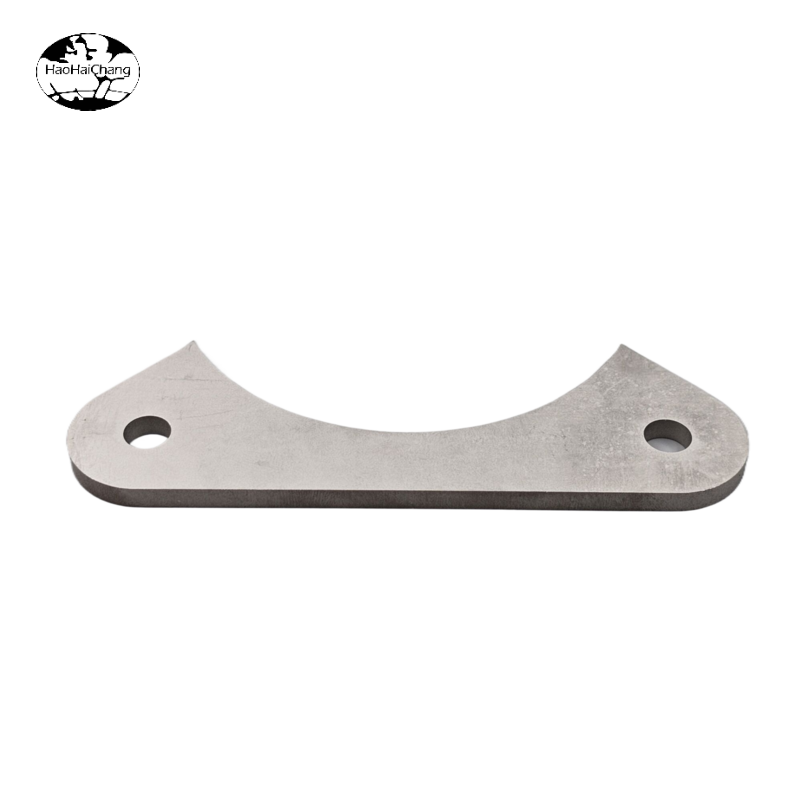

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Our HHC-1229 Stainless Steel Curved Mounting Bracket Clamp showcases our proficiency in complex curved profile cutting and forming operations. Manufactured from SUS304 stainless steel with dimensions of 129×42×5.0mm, this bracket demonstrates our ability to maintain consistent arc geometry while achieving precise hole positioning. Our specialized tooling and controlled forming processes deliver smooth curves and uniform thickness distribution across the entire component profile.
Product Name | HHC-1229 Stainless Steel Curved Mounting Bracket Clamp |
Material Options | Stainless Steel 304, Stainless Steel 316, Carbon Steel, Aluminum Alloy |
Diameter Range | Mounting Hole Φ6-Φ20mm, Inner Curve Radius 10mm-100mm |
Length Range | 30mm-200mm, 1.2"-8" |
Thickness | 2mm-8mm, 0.08"-0.31" |
Tolerance | ±0.01 mm |
Hardness | HRC 20-35, HV 180-320 |
Color: | Natural Silver, Brushed Finish, Passivated, Custom Colors Available |
Manufacturing Process | Metal Stamping, Progressive Die Stamping, Deep Drawing, Bending |
Machining Capabilities | Precision Hole Punching, Edge Deburring, Surface Finishing, Custom Curve Forming |
Applications | Pipe Clamps, Cable Management, Automotive Brackets, Industrial Equipment Mounting, HVAC Systems, Marine Hardware |
Certifications | IATF16949:2016 ISO9001:2015 ISO13485:2016 ISO14001:2015 AS9131D |
Packaging Details | Packaged in plastic bags then placed in carton boxes or as per clients' specific requirements |
| Shipping Port | Shenzhen or Hong Kong |
| Production Lead Time | |
| Quantity (pieces) 1 - 10,000 | 10 days |
| Quantity (pieces) > 10,000 | To be negotiated |
| Customization Services | |
| Customized logo | Min. order 100(pieces) |
| Customized packaging | Min. order 100(pieces) |
| Graphic customization | Min. order 100(pieces) |
