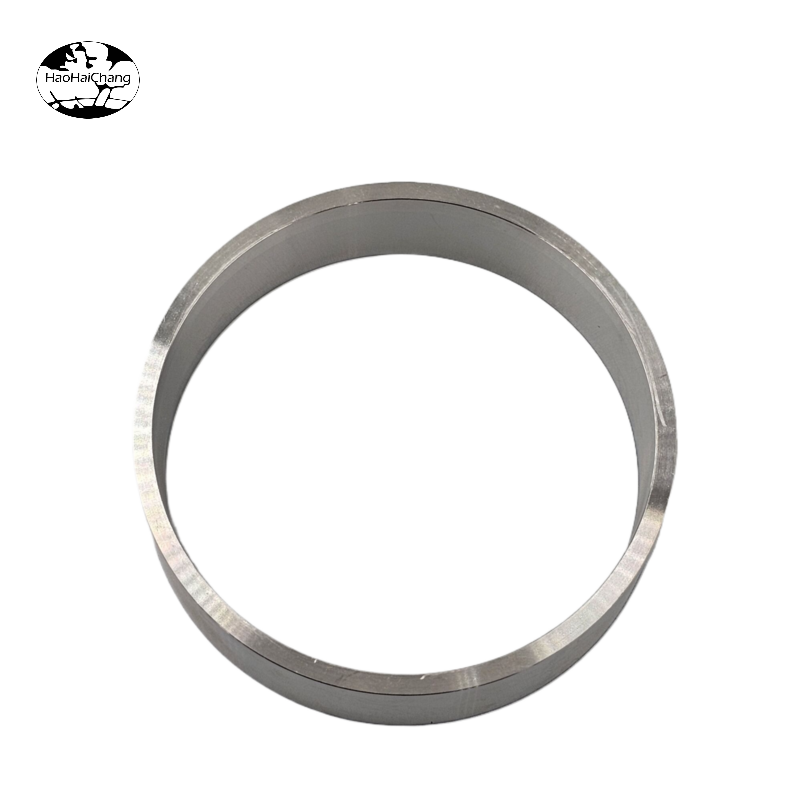

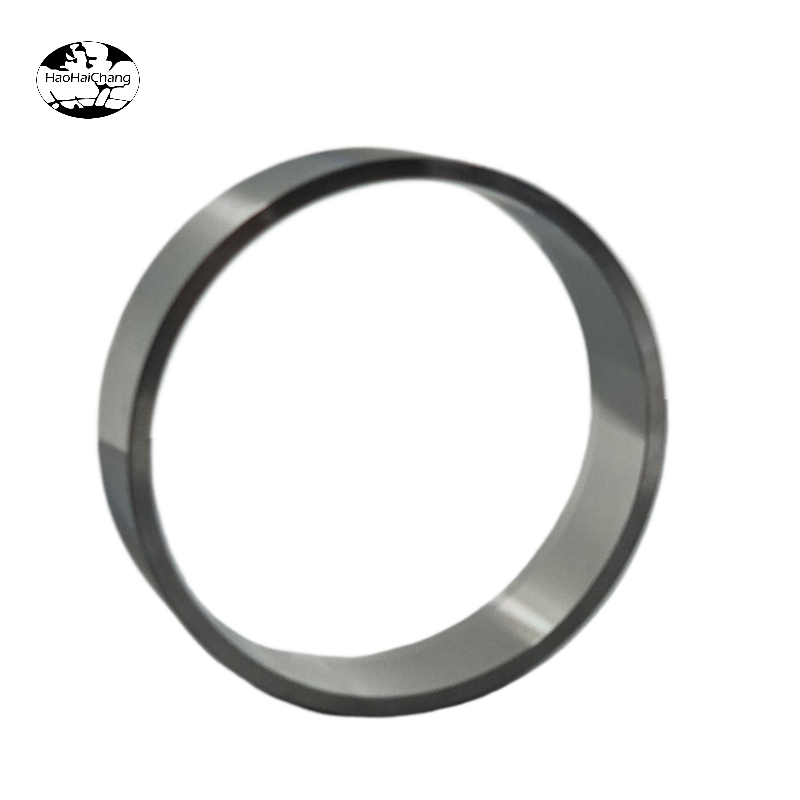

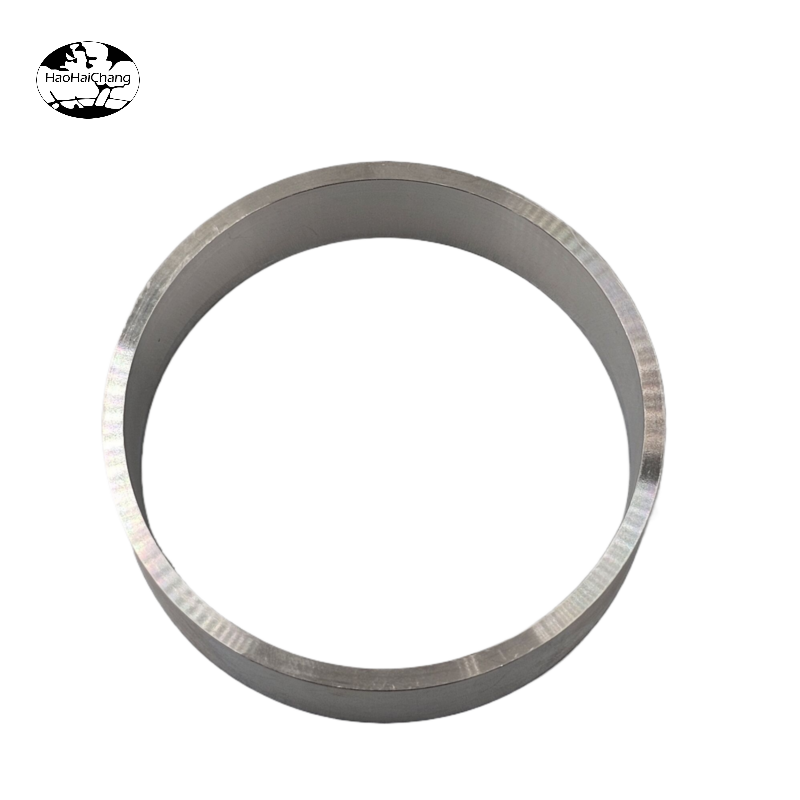

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Our HHC-1212 Stainless Steel Ring Spacer demonstrates our expertise in tight-tolerance SUS304 machining with Φ98.2XΦ90.2X25 specifications. This component showcases our advanced turning capabilities and precise bore-to-outer diameter control. Each spacer reflects our commitment to dimensional accuracy and smooth surface finishing, delivering reliable performance for critical assembly applications where consistent spacing matters.
| Items | Details |
| Product Name | HHC-1212 Stainless Steel Ring Spacer |
| Material Options | SUS304, SUS316, SUS201, Carbon Steel, Aluminum Alloy, Brass |
| Hardness | HRB 85-95 (SUS304), Custom Heat Treatment Available |
| Size Range | Diameter Range: Φ10mm - Φ300mm (Outer Diameter), Φ5mm - Φ280mm (Inner Diameter) Length Range: N/A (Ring Design) Thickness: 5mm - 50mm (Height), 1.5mm - 25mm (Wall Thickness) |
| Tolerance | ±0.01mm |
Manufacturing Process | CNC Turning, Precision Machining, Grinding, Cutting |
| Applications | Bearing Spacers, Mechanical Assembly, Precision Positioning, Shaft Spacing, Industrial Equipment |
Certifications | IATF16949:2016, ISO9001:2015, ISO13485:2016, ISO14001:2015, AS9100D |
Packaging Details | Packaged in plastic bags, then placed in carton boxes, or as per clients' specific requirements. |
| Services | Items | Details |
| Shipping Port | - | Shenzhen or Hong Kong |
| Production Lead Time | Quantity (pieces) 1-5,000 | 10 days |
| Quantity (pieces) >5,000 | Negotiable | |
| Customization Services | Customized Logo | Min. order 50 |
| Customized Packaging | Min. order 10 | |
| Graphic Customization | Min. order 50 |
