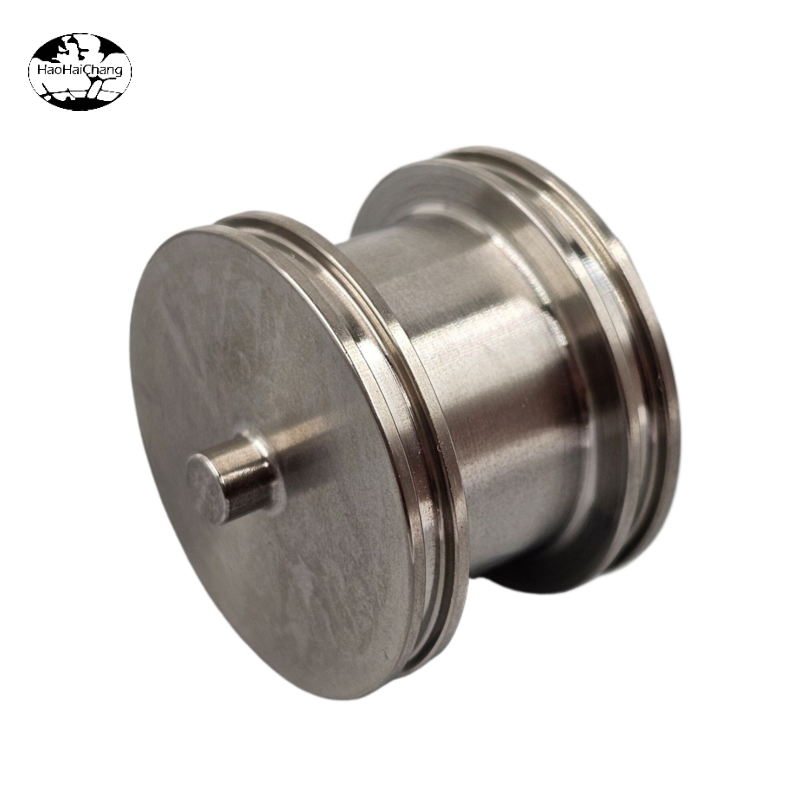

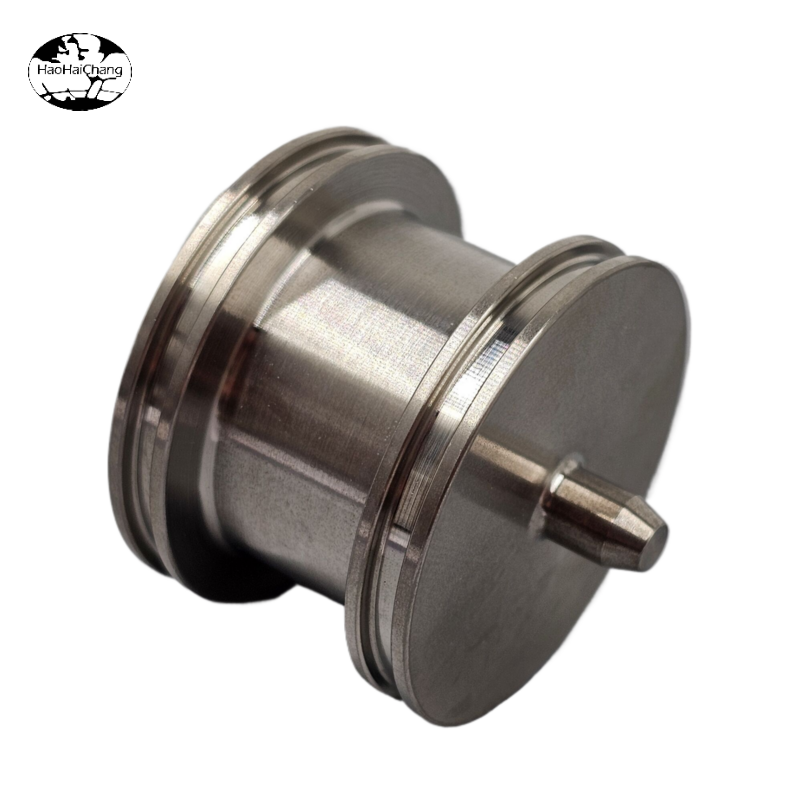

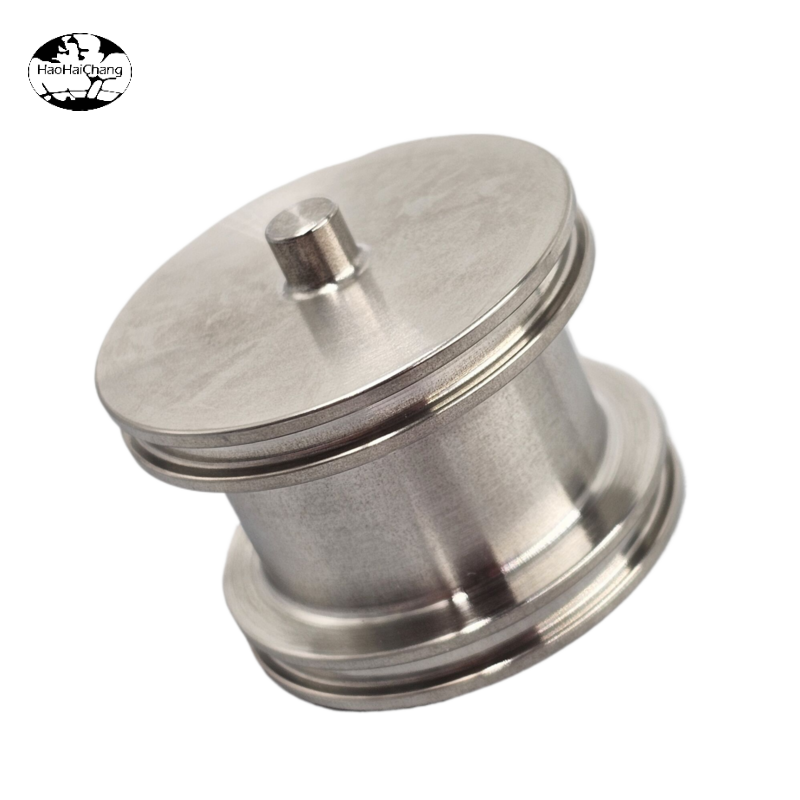

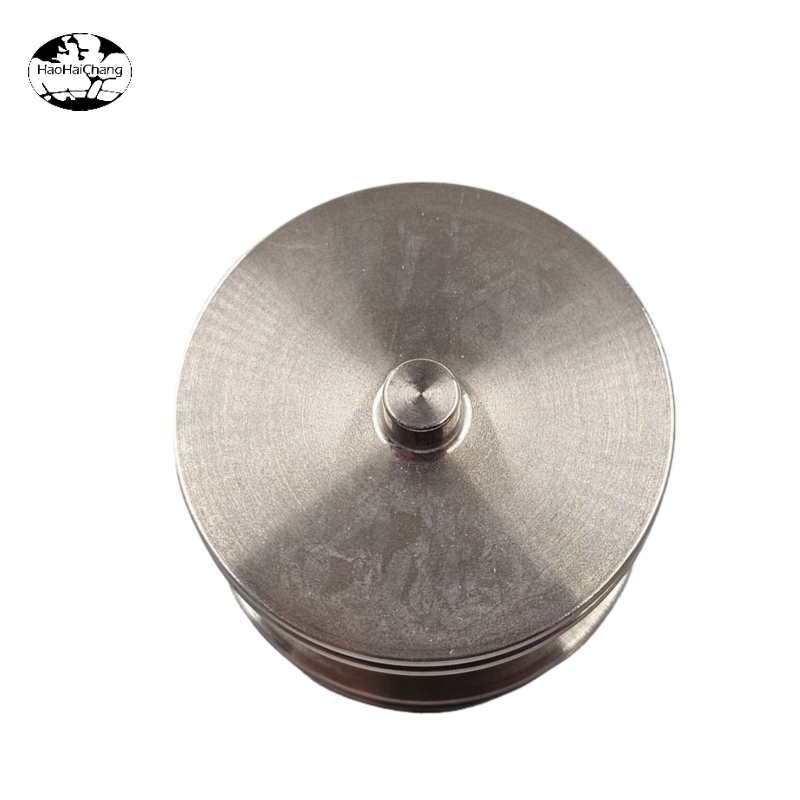

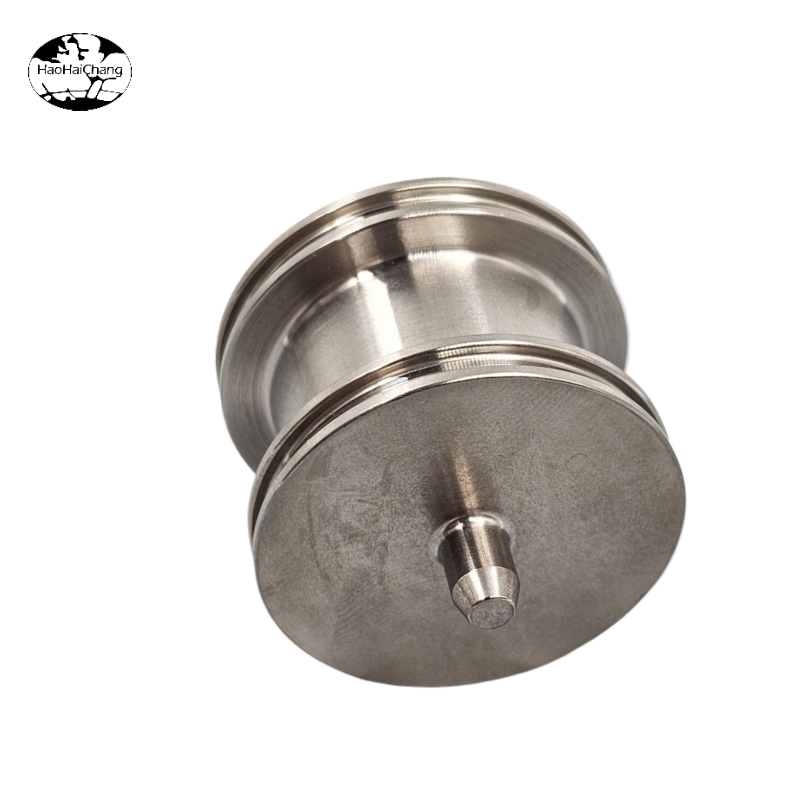

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Our HHC-1205 flanged spool pin, crafted from SUS303, features precision-turned cylindrical and flange surfaces at Φ39.52×41.42 dimensions. Advanced CNC turning centers, dedicated tooling, and thorough dimensional inspection deliver consistent concentricity, smooth finishes, and reliable performance in demanding mechanical assemblies.
| Items | Details |
| Product Name | HHC-1205 Stainless Steel Flanged Spool Pin |
| Material Options | SS304, SS316, SS316L, SS430, SS17-4PH, custom grades available |
| Hardness | HV200-350, heat treatment options available |
| Size Range | Diameter Range: 15-100mm, customizable Length Range: 10-80mm, customizable Thickness: 1-8mm, depending on application requirements |
| Tolerance | ±0.01mm |
Manufacturing Process | CNC Turning, Milling, Precision Grinding |
| Applications | Mechanical assemblies, Cable management systems, Industrial spools, Precision machinery components, Textile equipment, Marine hardware |
Certifications | IATF16949:2016, ISO9001:2015, ISO13485:2016, ISO14001:2015, AS9100D |
Packaging Details | Packaged in plastic bags, then placed in carton boxes, or as per clients' specific requirements. |
| Services | Items | Details |
| Shipping Port | - | Shenzhen or Hong Kong |
| Production Lead Time | Quantity (pieces) 1-5,000 | 10 days |
| Quantity (pieces) >5,000 | Negotiable | |
| Customization Services | Customized Logo | Min. order 50 |
| Customized Packaging | Min. order 10 | |
| Graphic Customization | Min. order 50 |
