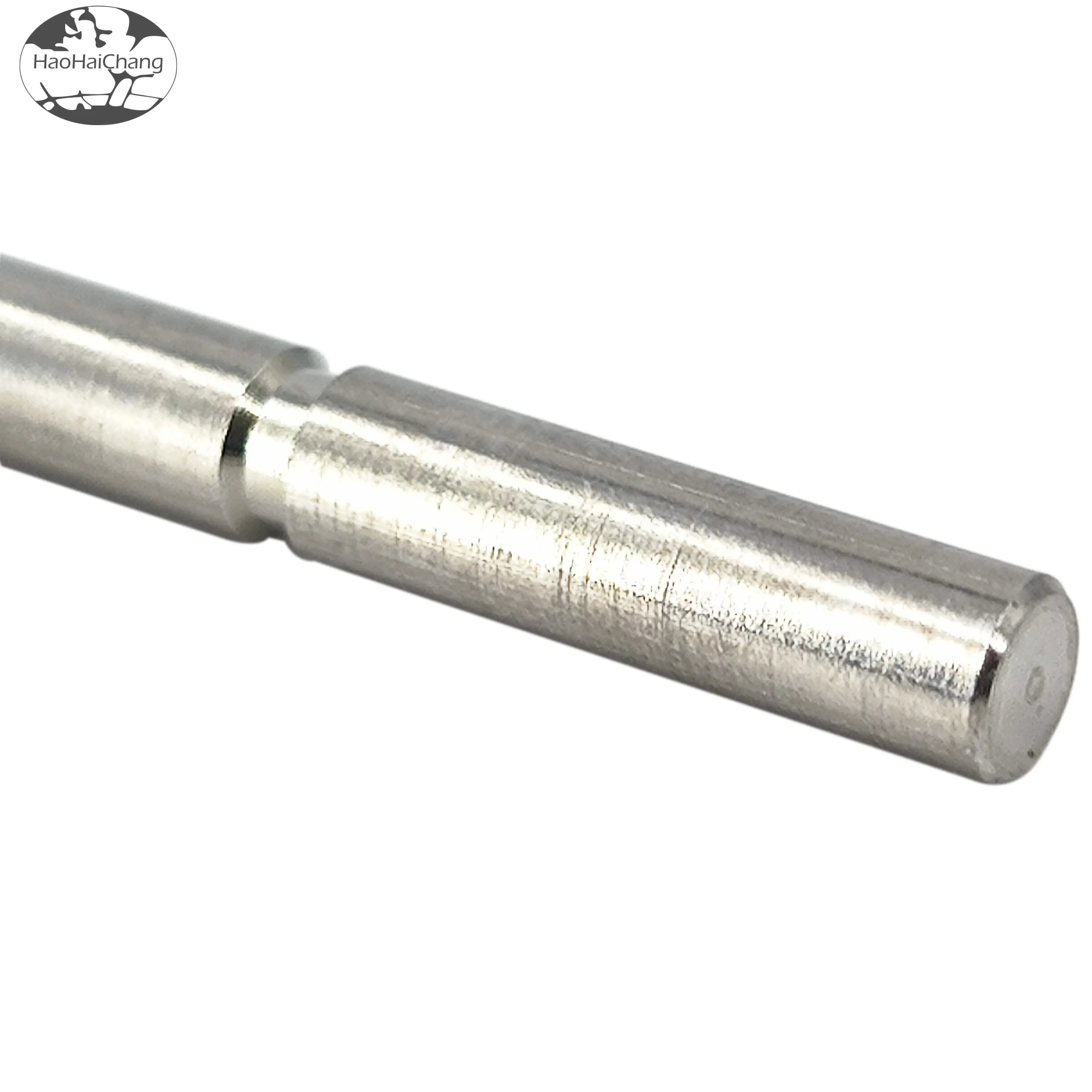

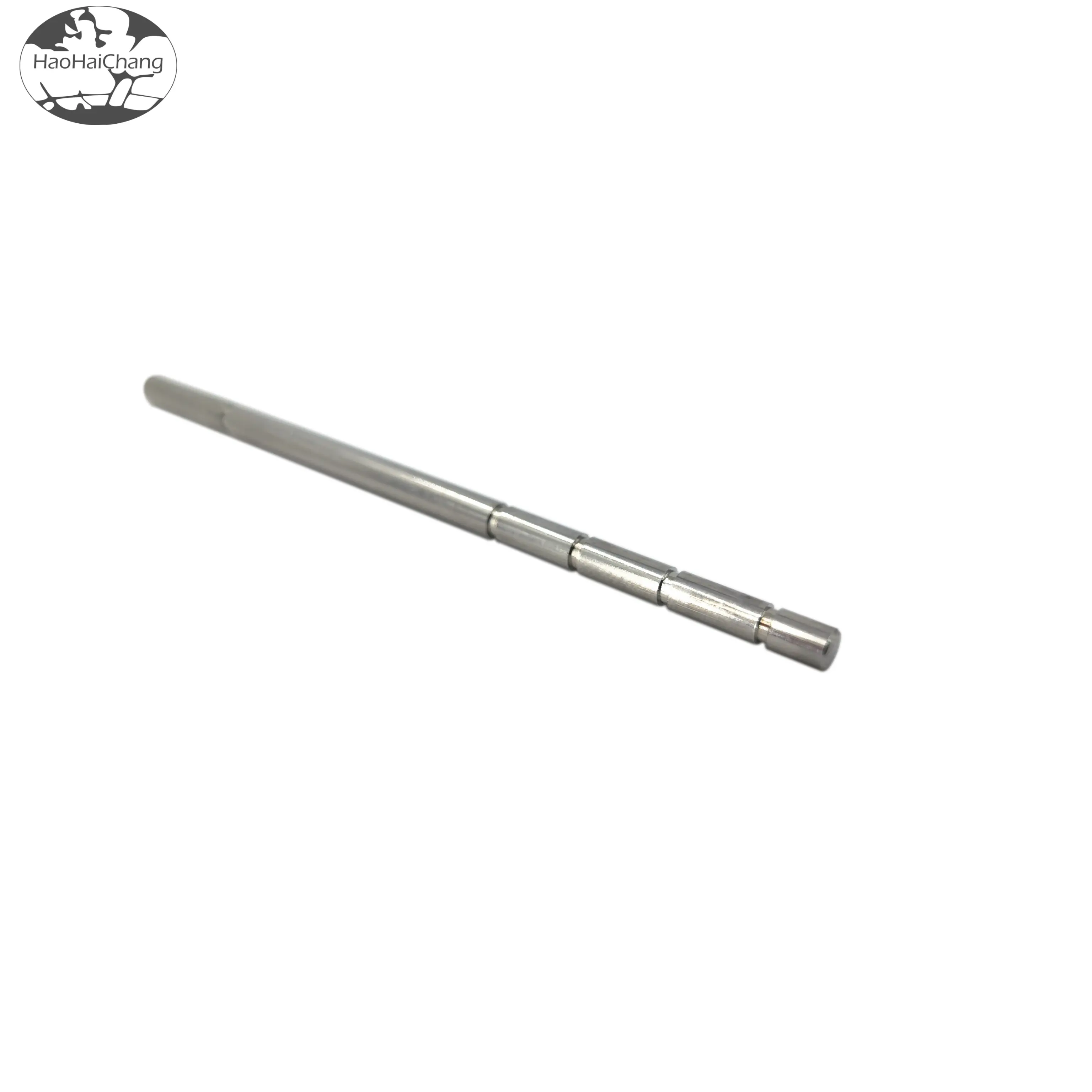

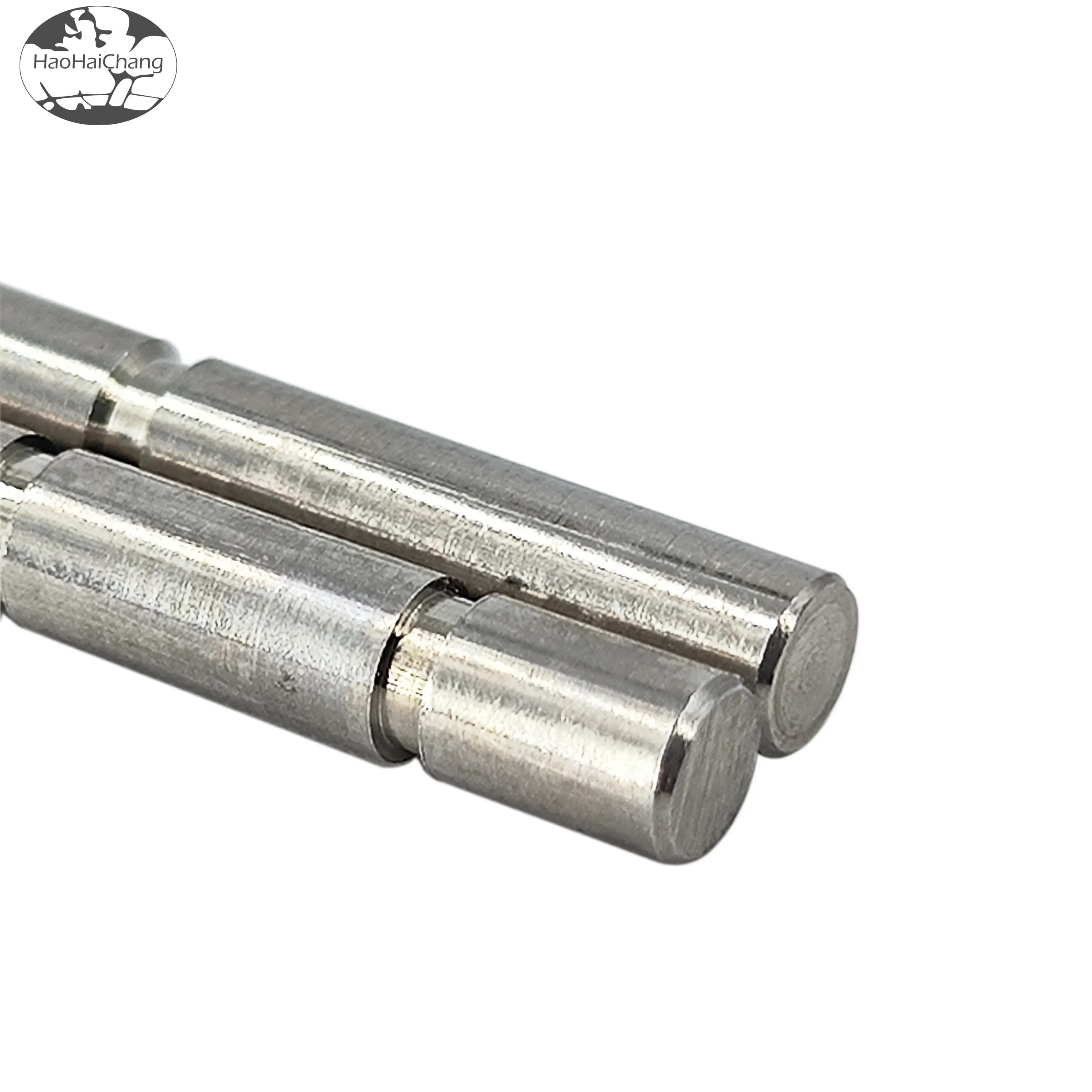

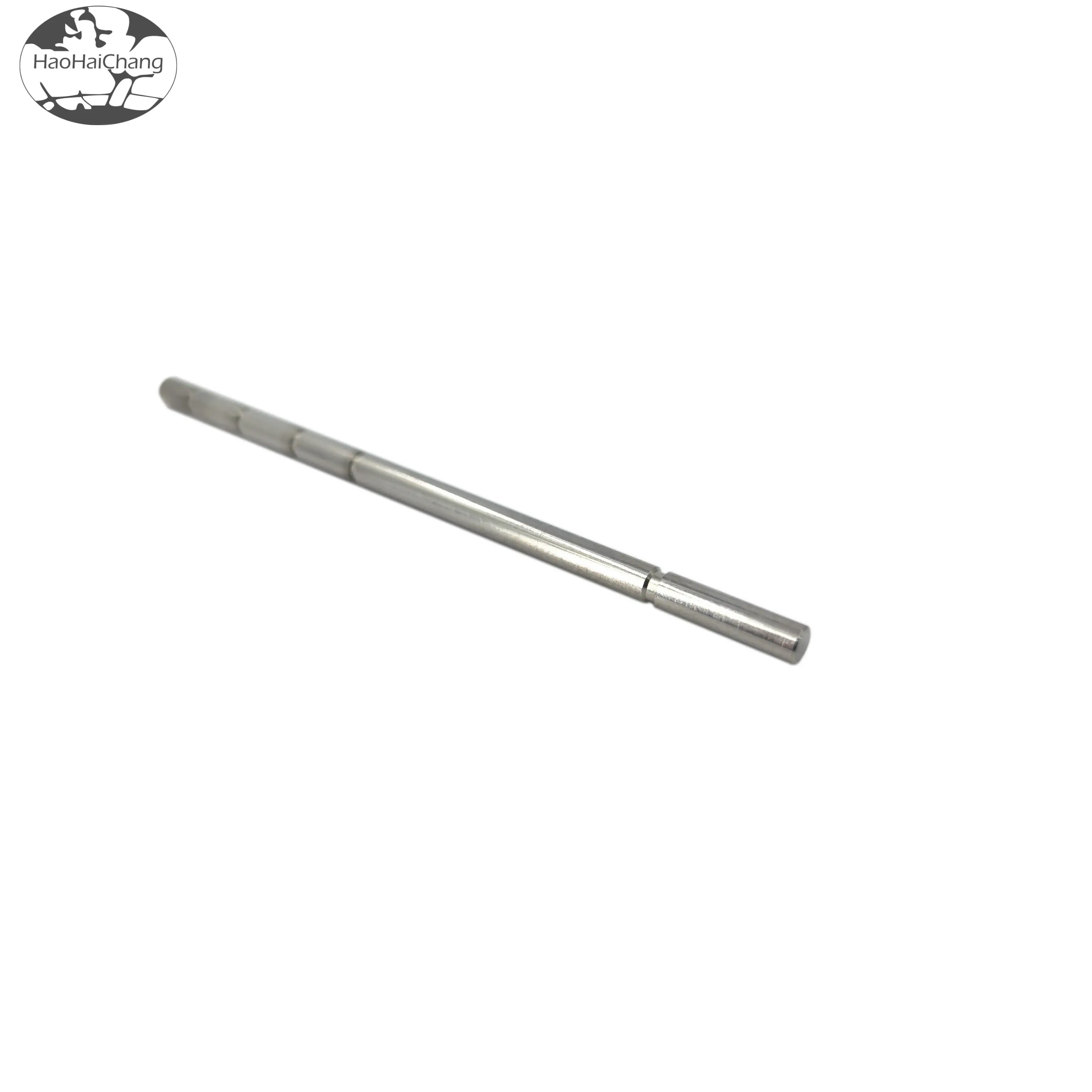

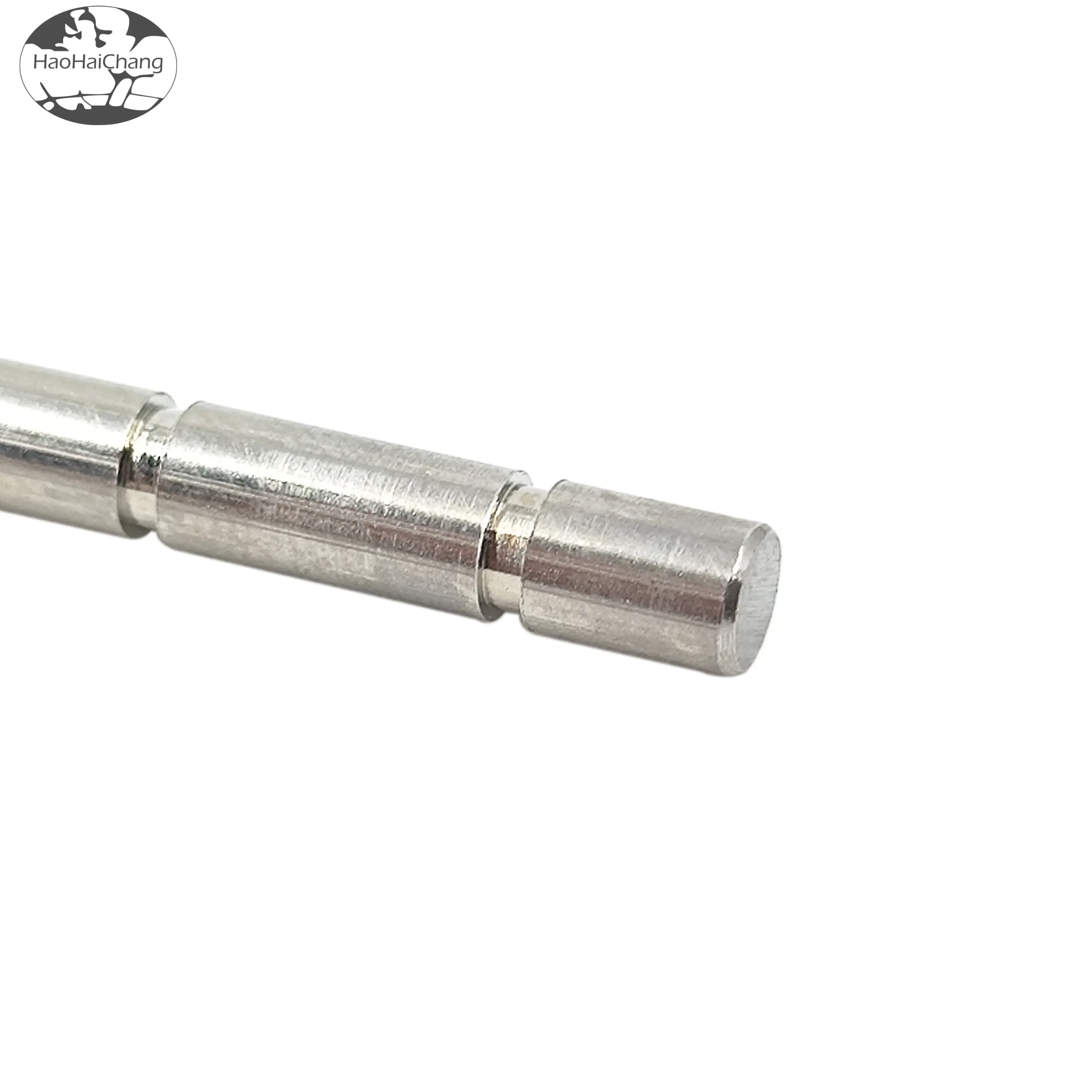

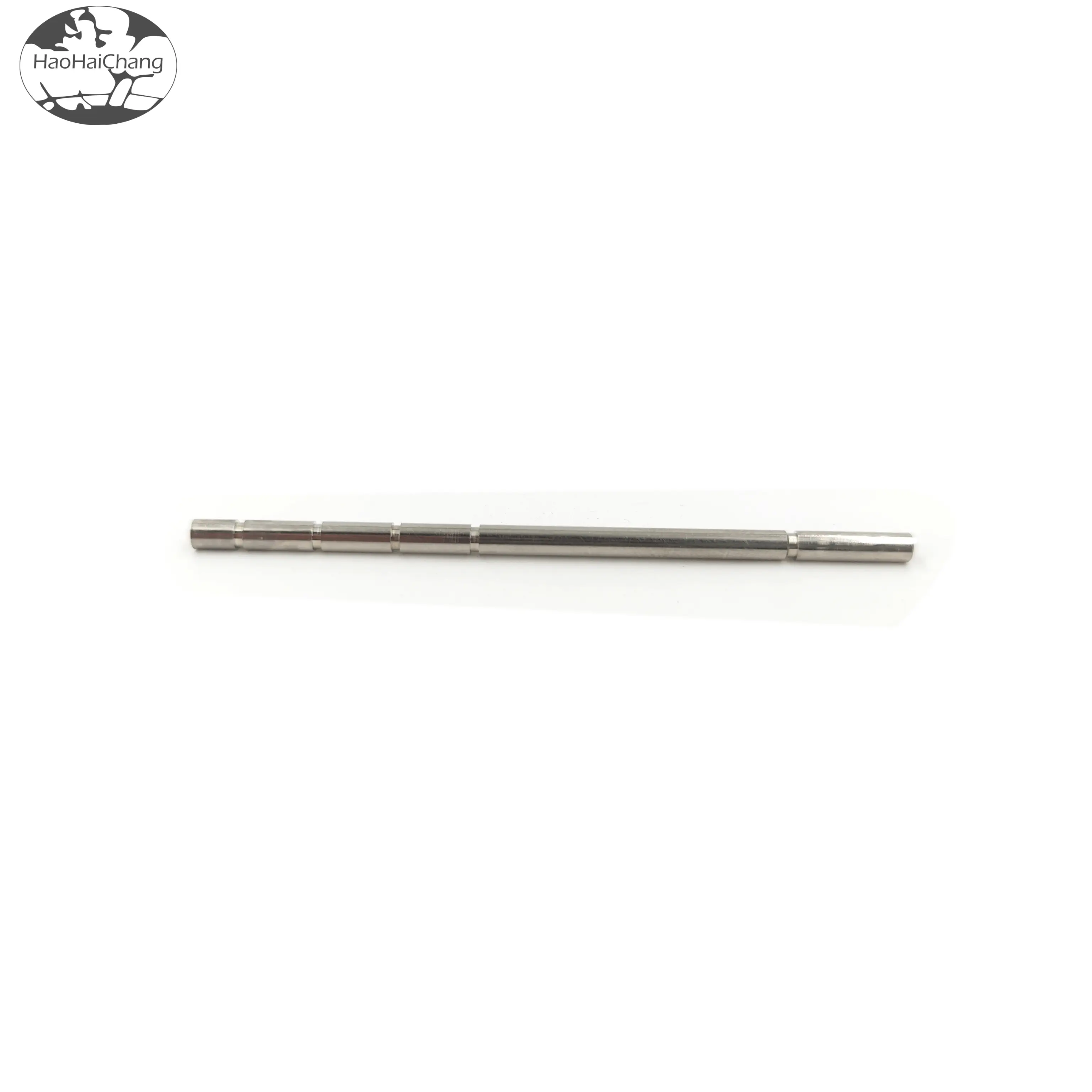

HHC Precision manufactures customized non-standard stainless steel rotor shafts and positioning shafts, engineered for new energy and automotive applications. Utilizing advanced CNC turning technology, these shafts offer exceptional dimensional accuracy, high strength, and corrosion resistance.
Material: Stainless Steel
Process: CNC Turning
Finish: Cleaning
We are a precision manufacturer specializing in precision metal hardware components. Allow us to introduce our Stainless Steel CNC Turning Parts product: Steel Pins. These pins, crafted from high-quality 316 stainless steel, come in dimensions of Φ3.6×2500(Φ3.6×83.3)mm, serving a variety of purposes in plumbing equipment and household appliances, delivering precision and durability.
| Items | Details |
| Product Name | Customized non-standard parts New energy Auto parts Stainless steel rotor shaft Positioning shaft |
| Standard Compliance | OEM Service |
| Certifications | IATF16949 2016; ISO9001 2015; ISO14001:2015; RoHS; REACH |
| Manufacturing Process | CNC Turning, Grinding |
| Applications | plumbing equipment, household appliancesPrecision Machinery, Automotive, Medical Equipment, Robotics |
| Product Type | Precision Nonstandard Parts (OEM Service) |
| Material Options | Stainless Steel (e.g. 303, 304, 316, 440C) |
| Packaging Details | Packaged in plastic tubes or boxes with foam inserts, then placed in carton boxes, or as per clients' specific requirements. |
| Diameter Range | 0.5mm - 20mm |
| Length Range | 5mm - 300mm |
| Tolerance | ±0.01mm |
| Hardness | 150-250 HV (can be hardened up to 58 HRC for 440C) |
| Surface Finish | Ra 0.1-0.8μm |
| Straightness | 0.01mm/100mm |
| Roundness | ≤0.005mm |
| Color | Natural stainless steel color |
| Machining Capabilities | CNC Turning, Centerless Grinding, End Grinding, Heat Treatment |
| Special Features | High precision, Excellent straightness, Good corrosion resistance, Customizable tip shapes (e.g., flat, chamfered, rounded), Suitable for alignment and assembly applications |
| Services | Items | Details |
| Shipping Port | Shenzhen or Hong Kong | |
| Production Lead Time | Quantity (pieces) 1 - 10,000 | 10 days |
| Quantity (pieces) > 10,000 | To be negotiated | |
| Customization Services | Customized dimensions | Min. order 200 |
| Special tip shapes | Min. order 500 | |
| Heat treatment | Min. order 1,000 |
