HHC Precision manufactures high precision stainless steel bushing sleeves using advanced CNC machining for exceptional dimensional accuracy, wear resistance, and long service life. Ideal for industrial, automotive, and mechanical assemblies, these bushings provide stable support, reduce friction, and resist corrosion.
Material: Stainless steel
Process:CNC Turning
Finish: Cleaning

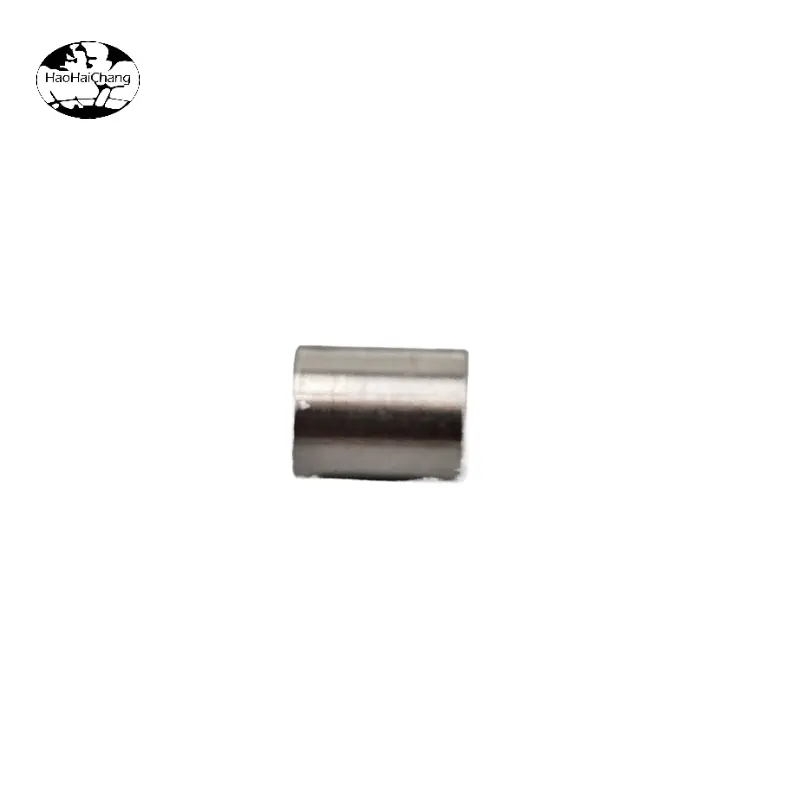

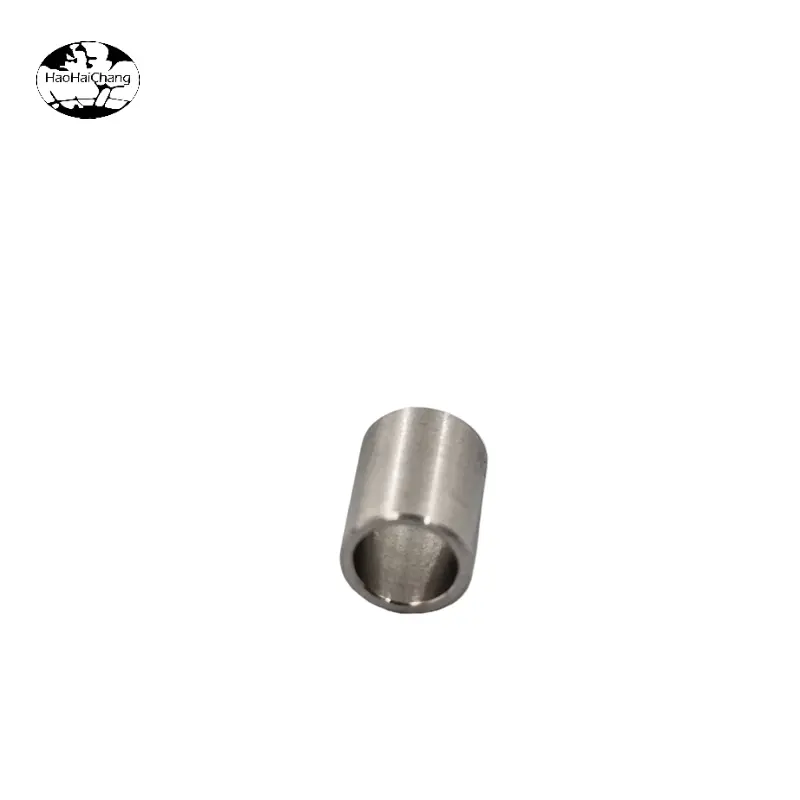

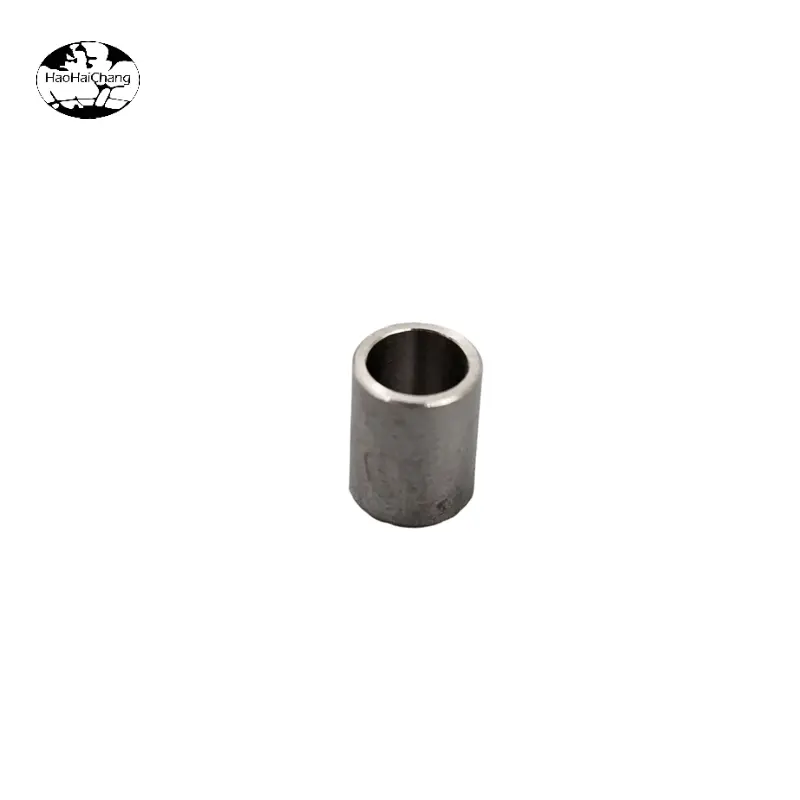

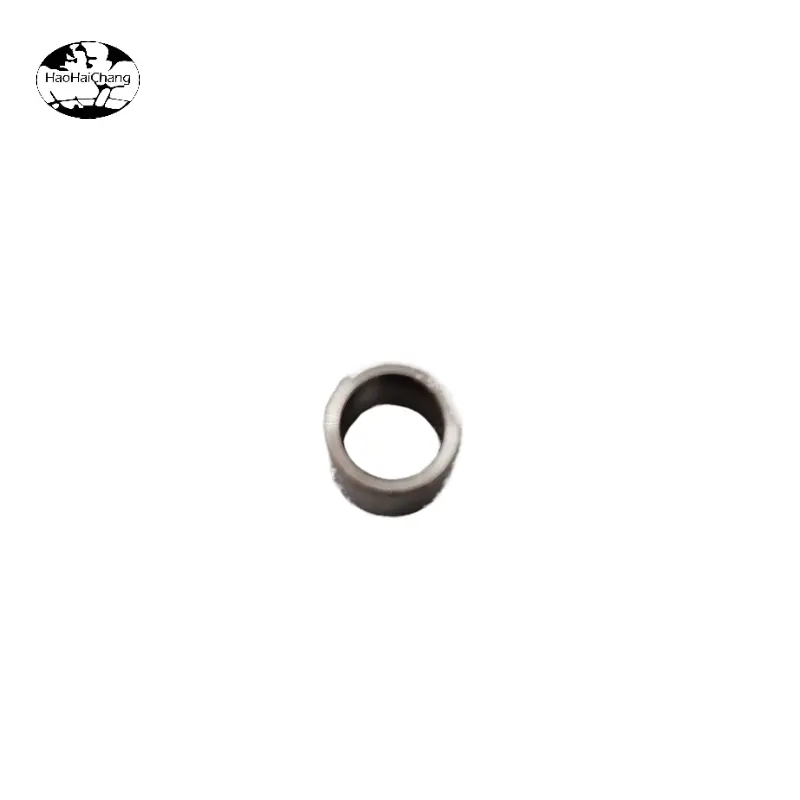

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Our HHC-1199 Stainless Steel Bushing Sleeve, with a tight tolerance φ4.7 × 6 mm profile, showcases advanced CNC turning and grind finishing. Dedicated team applies rigorous inspection protocols and cutting-edge equipment to meet demanding tolerances and surface finishes, delivering consistent performance in critical assemblies.
| Product Name | HHC-1199 Stainless Steel Bushing Sleeve |
| Diameter Range | φ1–50 mm (customizable) |
| Length Range | 1–100 mm (standard 6 mm) |
| Thickness: | wall thickness 0.2–5 mm (customizable) |
| Tolerance | ±0.01 mm |
| Hardness | 180–220 HV (post-machining) |
| Machining Capabilities: | multi-axis CNC turning, internal/external grinding, deburring, polishing, |
| Applications | precision bearing housings, shaft couplings, connector insulation spacers |
| Certifications: | IATF16949:2016,ISO9001:2015,ISO13485:2016,ISO14001:2015,AS9100D, |
| Packaging Details: | Packaged in plastic bags, then placed in carton boxes, or as per clients' specific requirements. |
| Shipping Port | Shenzhen or Hong Kong |
| Production Lead Time | |
| Quantity (pieces) 1 - 5000 | 10 days |
| Quantity (pieces) > 5000 | To be negotiated |
| Customization Services | |
| Customized logo | Min. order 2 |
| Customized packaging | Min. order 2 |
| Graphic customization | Min. order 2 |
